proposal: structure

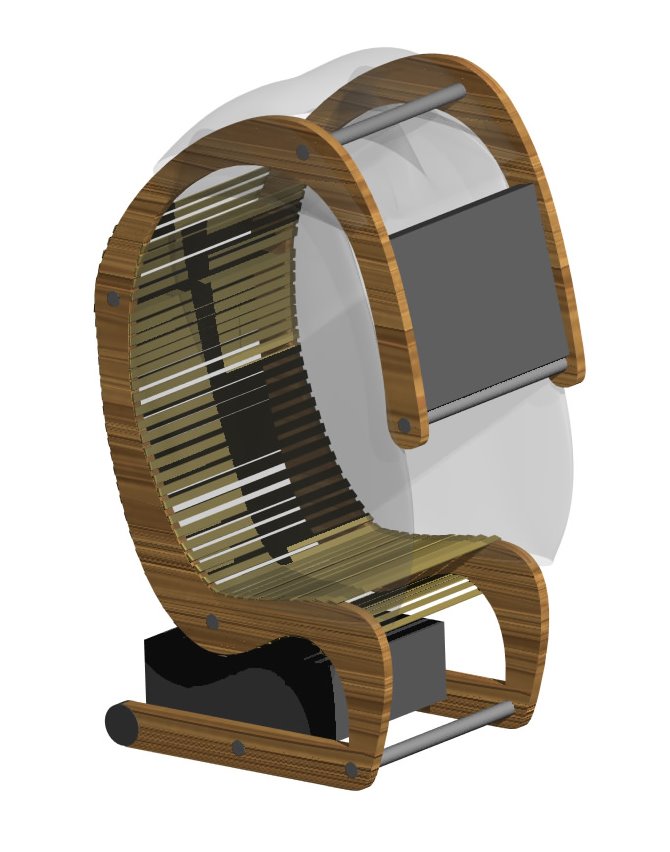

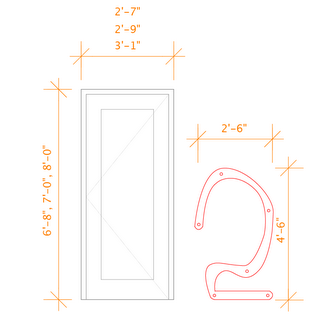

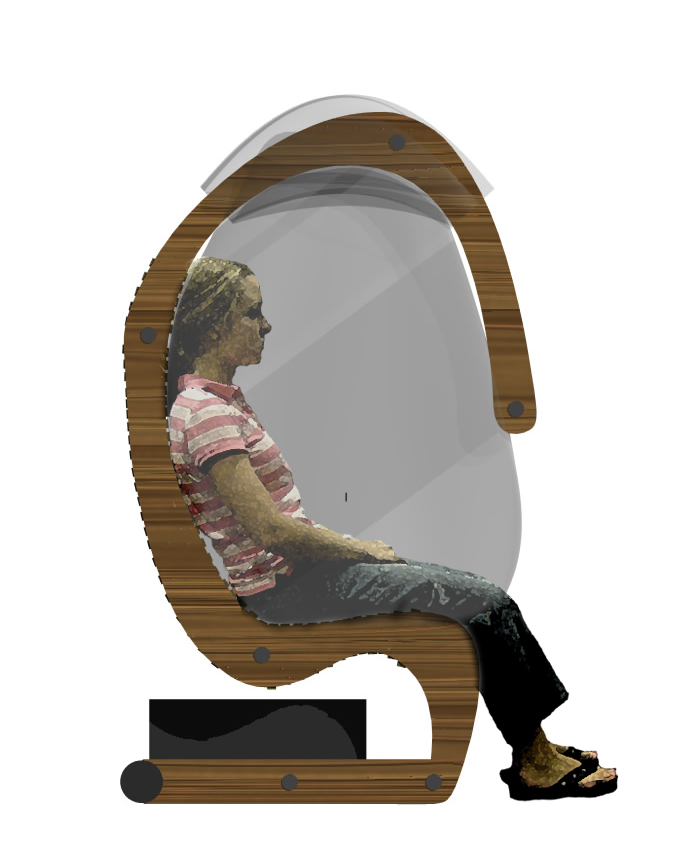

With an emphasis on structure, this proposal begins with two identical wooden ribs with PVC pipes for horizontal support and stability. The ribs would be secured 2'-6" apart from one another, enabling easy clearance through a door frame. Technology such as the CNC router would allow for a unique design in the contours of the ribs to be suit the desired body position. The body would be supported by elastic bands, providing both comfort and flexibility of the space occupant. This is shown in the illustration below.

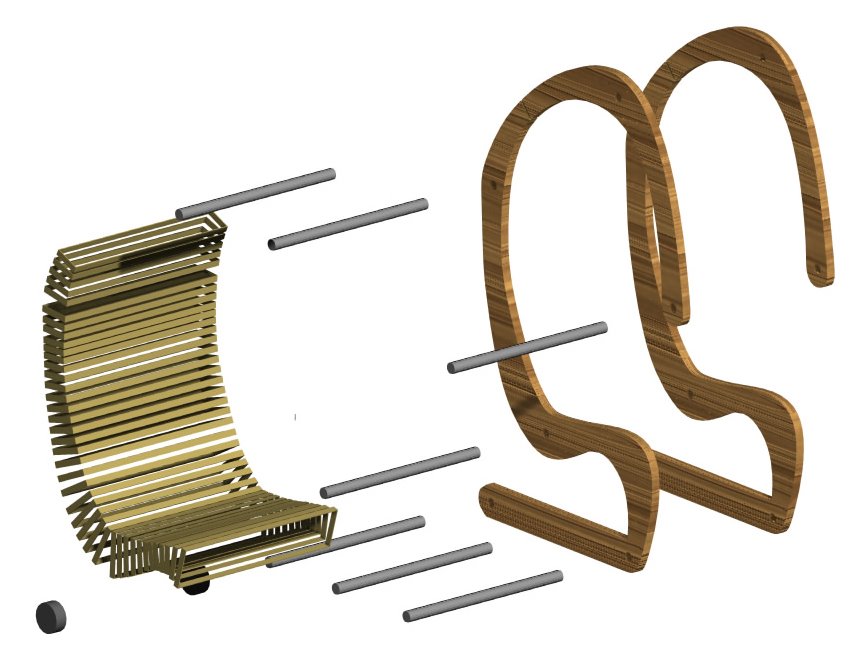

The design also allows for the placement of other elements such as the A/V equipment to include a monitor screen and computer box and an acoustically sound material on the sides of the station to provide a sense of enclosure and to absorb sound. The proposal includes a translucent, flexible material for easy entry and access to the structure as well as ease of transportation. The base of the design includes a set of wheels behind the seat to allow the structure to be rocked back and rolled to other locations. A breakdown of the structure is shown below.
